    MHN10C MHN20C MHN30C PCBN Cutting Inserts CBN WORLDIA Cutting Tools

    Ask Lasest Price
    Brand Name : ManaNova
    Model Number : VCGW 110304
    Certification : ISO9001,14001.18001, RoHS
    Price : $20-40/ Piece
    Payment Terms : L/C, T/T, D/A, D/P
    Supply Ability : In stock
    Delivery Time : 3-4days
    • Product Details
    • Company Profile

    MHN10C MHN20C MHN30C PCBN Cutting Inserts CBN WORLDIA Cutting Tools

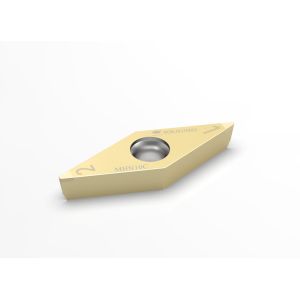

    VCGW110304 Coated CBN Carbide Turning Insert CBN Cutting Insert for hardened steel​


    Application:


    Worldia ManaNova series covers 7 high-quality CBN grades for the processing of hardened steel,

    cast iron, and powder metallurgy, the available grades are MHN10C, MHN20C, MHN30C,

    MKN10, MKN20, MSN10, and MSN20.


    MHN10CApplied to the continuous cutting of hardened steel
    MHN20CApplied to medium interrupted cutting of hardened steel
    MHN30CApplied to the heavy interrupted cutting of hardened steel
    MKN10Applied to the cutting of gray cast iron
    MKN20Applied to the cutting of ductile iron
    MSN10Applied to the cutting of powder metallurgy
    MSN20Applied to the cutting of powder metallurgy

    Description:

    "ManaNova" is a sub-brand of Worldia, focusing on the high-end standard series.

    ManaNova is a concept that stands in the view of end-users, we strictly choose PCD and PCBN materials

    to provide the universal cutting effect.


    The key feature of ManaNova is Easy choice and Fast delivery.
    "Easy choice": It is easy to choose according to the comparison table and application.
    "Fast delivery": All the types of ManaNova PCD Inserts in the catalog are available in stock.

    Eliminating force majeure, you can get within 4-5 days.


    Main products:


    PCBN insert:

    PCBN insert is suitable for machining of hardened steel, gray cast iron, ductile iron, and powder metallurgy.


    PCD insert:

    PCD insert is suitable for rough and finish machining of aluminum alloy and other non-metal materials.


    Advantages:
    · Universal
    · Easy choice
    · Fast delivery


    Service:
    · Online store service
    · Local distributor support
    · Technical support


    Specification:


    MaterialISO HISO KISO S
    PCBN GradeMHN10CMHN20CMNH30CMKN10MKN20MSN10MSN20
    SmoothModerateToughnessCast IronDuctile IronPowder MetallurgyPowder Metallurgy
    Vc180(150~250)
    m/min
    100(50~150)
    m/min
    80(30~120)
    m/min
    600(300~800)
    m/min
    300(150~450)
    m/min
    300(200~500)
    m/min
    500(300~800)
    m/min
    fn0.1(0.03~0.2)
    mm/r
    0.1(0.03~0.2)
    mm/r
    0.1(0.03~0.2)
    mm/r
    0.1(0.03~0.3)
    mm/r
    0.1(0.03~0.3)
    mm/r
    0.1(0.03~0.3)
    mm/r
    0.1(0.03~0.3)
    mm/r
    %45~5560~7085~9585~9560~7060~7085~95
    Grain size1~2 um1~2 um2~3um2~3 um1~2 um1~2 um2~3 um
    BondTiCTiNCo/WCo/WTiCNTiCNCo/W

    VCGWShapeDimensions
    ANSI CodeISO CodeTipsIC
    mm
    S
    mm
    R
    mm
    Φd
    mm
    LE
    mm
    All
    Stocked
    VCGW 221VCGW 1103042N6.353.180.42.82.2
    VCGW 222VCGW 1103082N6.353.180.82.82.2
    VCGW 331VCGW 1604042N9.5254.760.44.42.2
    VCGW 332VCGW 1604082N9.5254.760.84.42.2
